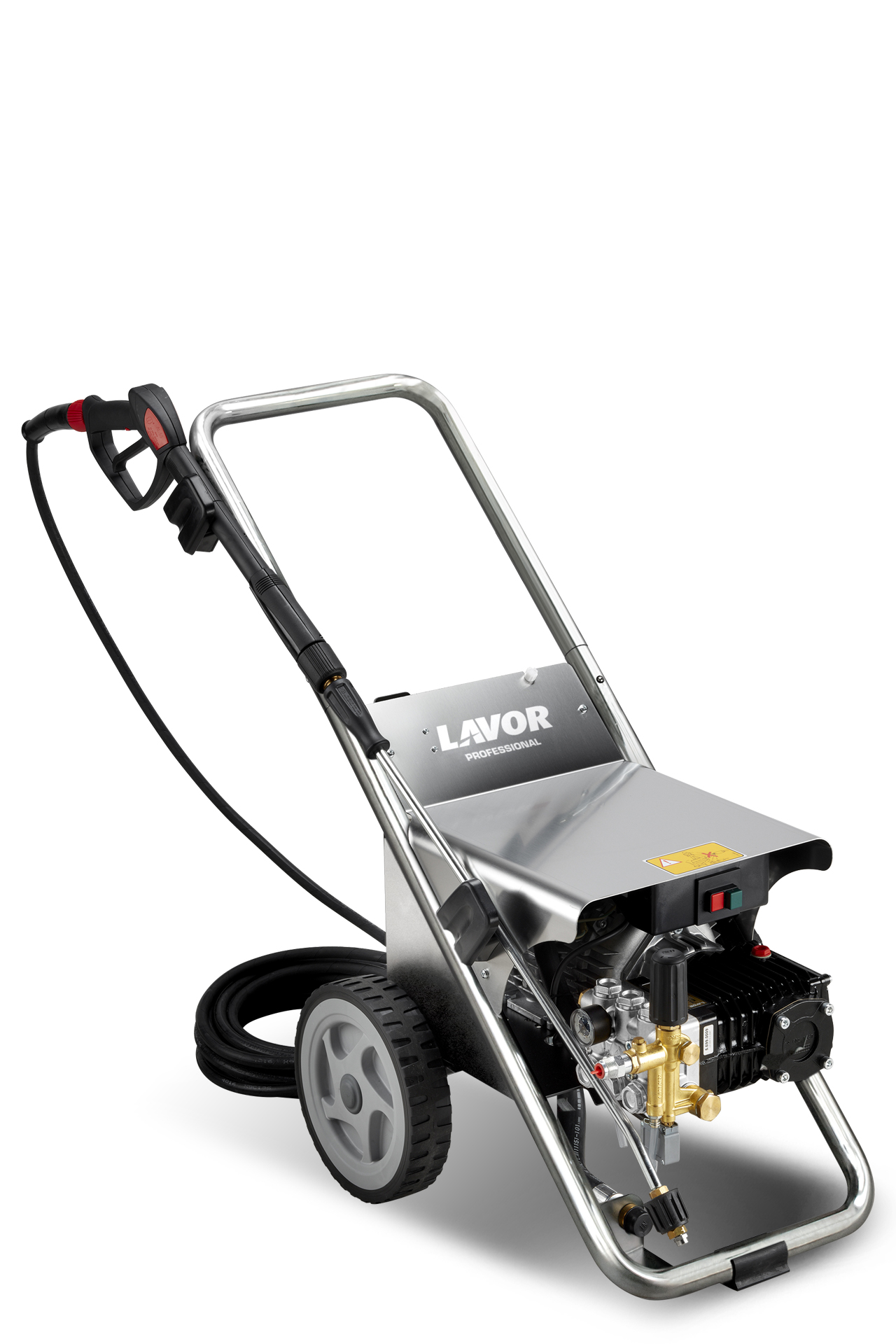

Lavor HCR Cold Water

Name: Lavor HCR Cold Water
SKU: LAV 140
Availability: InStock

Lavor Indo E Cold Water

KWD 79.00

Lavor Columbia-R Cold Water

KWD 99.00

KWD 79.00

Three ceramic pistons, Nickel plating brass linear pump head (model 1515/2015/2021/2515) brass linear pump head (model 1211) with high temperature water seals and flanged valve and pressure regulator.

Lavor HCR Cold Water quantity

Ask a Question

... people are viewing this right now

Guaranteed Safe Checkout

Description
Reviews (0)

4 poles electrical motor (1400 rpm) with thermal protection and water cooling.
Three ceramic pistons, Nickel plating brass linear pump head (model 1515/2015/2021/2515) brass linear pump head (model 1211) with high temperature water seals and flanged valve and pressure regulator.
Suction and delivery Stainless steel valves.
Integrated elastic joint, for best pump coupling.
Low voltage and delayed Total Stop
Integrated detergent suction with external suction probe.
Glycerine pressure gouge.
Hose reel (optional).
Galvanized steel frame.
Stainless Steel covers.

Technical Data:

	HCR 1211 LP	HCR 1515 LP	HCR 2015 LP	HCR 2021 LP	HCR 2515 LP
Code	36082-00170	36082-00137	36082-00138	36082-00139	36082-00140
Rated/max pressure	120/150 bar – 1740/2175 psi	150/180 bar – 2175/2610 psi	200/230 bar – 2900/3335 psi	200/230 bar – 2900/3335 psi	250/280 bar – 3600/4061 psi
Max delivery flow rate	600 l/h – 2.9 gpm	900 l/h – 3.96 gpm	900 l/h – 3.96 gpm	1260 l/h – 5.55gpm	900 l/h – 3.96 gpm
Abs, power/supply	3000W/230V 1-50 hz	5000W/400V 1-50 hz	7000W/400V 3-50 hz	9400W/400V 3-50 hz	8500W/400V 3-50 hz
Motor power	2,2 KW	4,0 KW	5,5 KW	7,5 KW	7,5 KW
Pump model	CL3.8/1400 rpm	CL6/1400 rpm	CL6/1400 rpm	CL6/1400 rpm	CL6/1400 rpm
T max water intel	60°C	60°C	60°C	60°C	60°C
Dimension (cm)/weight	50x90x83/54 Kg (119 lbs)	50x90x83/54 Kg (119lbs)	50x90x83/56 Kg (123 lbs)	50x90x83/58 Kg (128 lbs)	50x90x83/58 Kg (130 bs)
